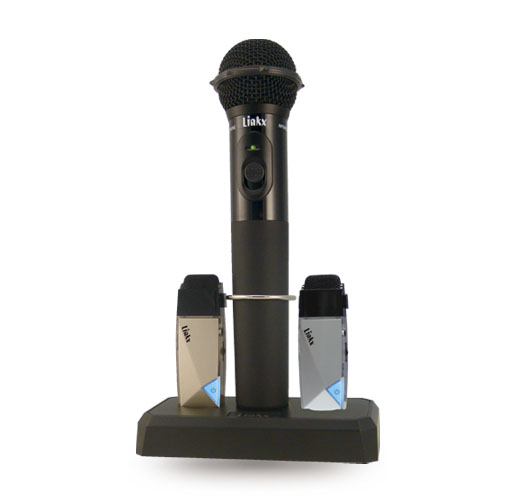

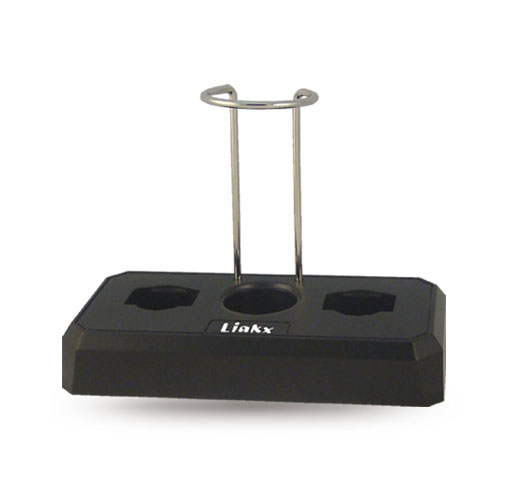

CHR-303 Charger

CHR-303

Charger
for all Infrared Sound Systems

Could charge up to 2 pendant microphones T6/T6r and one handheld microphones IRM-201 or IRM-202.

Download

Related Products

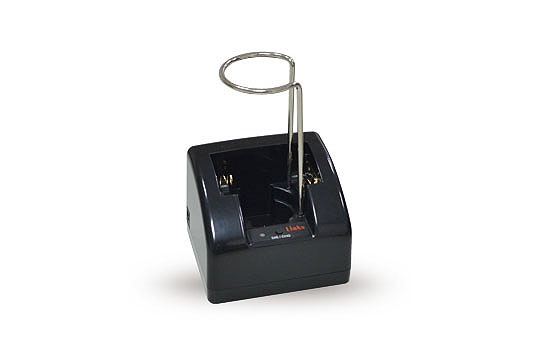

CHR-103

Single Slot Charger

images

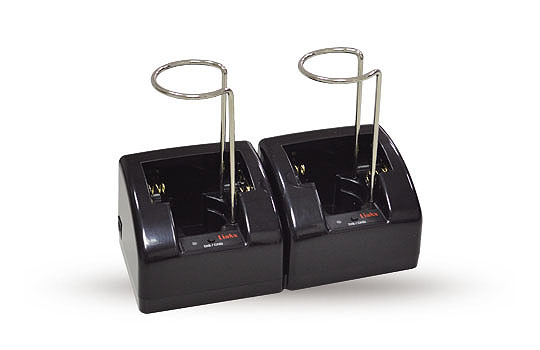

CHR-203

Dual Slot Charger

images

Features
Specification

3 charging compartments, can charge 1 handheld and 2 pendant transmitter
Convenient Drop-in insertion
Standby mode indicator – Blue LED
Pendant LED indicator
- Charging – Red LED
- Full Charge – Green LED
Handheld charging compartment LED Indicator
- Charging – Red LED
- Full Charge – Green LED
- Red Flashing : Defective Battery
- Red & Green Flashing : One time battery or non-rechargeable battery
Auto full charge maintenance

Model no	CHR-303
Charging Slot	Three slots, 2 x pendant and 1 x handheld
Charging Mode	Switching
Charging Current	220mA for pendant 400 mA ±10% for handhel
Charging Time	3.5 hours for pendant 6 hours for handheld
Charging Indicators	Blue = Standby (Handheld) Red = Charging Green = Full Red Flashing = Defective Battery Red & Green Flashing = One time battery or non-rechargeable battery
Power Supply	DC 12V/600mA
Dimensions	144(D) x 70(W) x 28(H) mm
Weight	261 g
