TG-100 · TG-101|Tour Guide System|Linkx

Digital UHF Tour Guide System

TG-100 · TG-101 · TG-100S

The TG-100/101 tour guide system offers multiple selectable channels, an easy-to-read LCD display, user-friendly operation, and USB rechargeable functionality.
Its LCD clearly shows channel number, volume level, battery meter, and other key operating parameters.
Compact and lightweight, it is comfortable to wear in the field. A built-in 600 mAh lithium-polymer battery provides over 16 hours of continuous use per charge, with convenient recharging via a universal Micro-USB socket (approx. 6 hours for a full charge). Optional 2/12/35/60/70-slot charging cases and stations are also available.

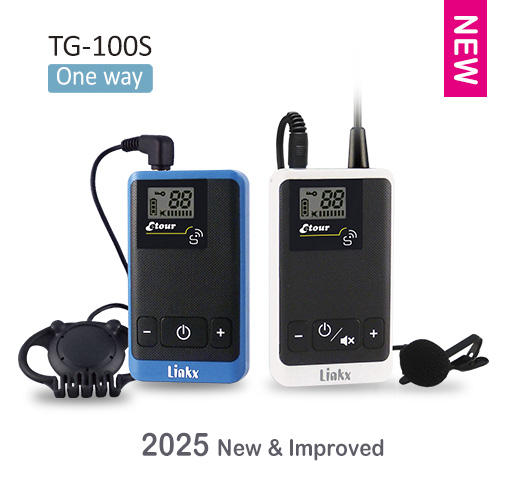

For an enhanced experience, the TG-100S offers elegant upgrades while maintaining the same lightweight and comfortable design.
Featuring Smart Pairing and ProScan full-time automatic frequency scanning technology, it ensures fast setup and stable communication.
Its intuitive controls and USB-C charging provide added convenience and longer, uninterrupted operation, allowing users to explore and discover with ease.

Download

TG-100

TG-101

TG-100S

Smart pairing and instant automatic cleaning channel scanning.

Our next-generation TG-100S tour guide systems utilize Linkx's exclusive automatic frequency scanning and frequency-hopping technology, eliminating the need for manual adjustments and preventing unexpected interference. Enjoy seamless, uninterrupted communication throughout your entire tour.

Lightweight design

Continuing LINKX's signature design philosophy of lightweight excellence, our systems offer a distinctly more comfortable, burden-free wearing experience compared to the bulky tour guide devices commonly available on the market.

Features
Frequency-Channel Chart
Specification
Tour Guide Chargers
Sync Kit

TG-100 One-way system

Easy to read LCD screen displays channel number, volumes, lock icon, battery meter and charging condition
Extremely compact and light weight – 34g
16hr+ of long continuous run time
Eco + Energy saving – Receiver will power off automatically if no signal is received for 20 mins
Auto Synchronize receiver with transmitter channel
Special made microphone accessories accept external multimedia and wireless transmit content to the receivers
Multi-color option – white, blue, green, amber and black

Special features for TG-101 Two-way system

Crystal clear audio and instant two-way communications with negligible latency
Full duplex interactive communication which allows simultaneous transmission and reception
Increase participation – Receiver can make speech and feedback to the others

Special features for TG-100S One-way system

Smart pairing and instant automatic cleaning channel scanning.

Frequency selection & No. of selectable channels

Channel Grid 125 KHz

Frequency(MHz)	Channel	Frequency(MHz)	Channel
794-806	96	863-865	16
806-810	30	863-870	56
812-824	96	902-928	99
823-832	72	925-937.5	99

other frequencies available on request

Model no	TG-100S		TG-100		TG-101
	Overall System
Frequency	500-952 MHz		794-937.5 MHz
Modulation	GFSK
Latency	20ms		22ms
Frequency response	20Hz-3KHz
THD at 1KHz	< 3 %
Service coverage	Indoor: 50m Outdoor: >90m
Operating temperature	-10 ~ 50℃
	TG-100T(S) Transmitter	TG-100R(S) Receiver	TG-100T Transmitter	TG-100R Receiver	TG-101T Transmitter	TG-101R Receiver
RF output power	10 mW	－	10 mW	－	10 mW
Receiver sensitivity	－	-88 dBm	－	-110 dBm	-110 dBm
3.5mm phone jack	Mic in x 1	Earphone output	Mic in x 1	Earphone output	Headset in	Earphone output
Microphone source	External	－	External	－	External	Built-in
Input level	Mic: -40dBV	－	Mic: -30dBV(Max) Line: 0dBV	－	Mic: -30dBV(Max)	－
Front + & - buttons	Group code selector & Volume up/down		Channel selector & Volume up/down
Power button	Power on/off and Mute	Power on/off	Power on/off and Mute	Power on/off	Power on/off and Mute	Power on/off
Battery	Li-Polymer (600mAh/3.7V)
Battery life (approx.)	11 hr		11 hr	16 hr	12 hr	15 hr
Charging source	DC 5V TYPE-C USB		DC 5V Micro USB
Charging time	approx. 5 hr		approx. 6 hr		approx. 6.5 hr
Charging current	135± 10mA		105± 10mA
Regulatory compliance	CE
Dimension	40(W) × 12(D) × 69(H)mm Antenna length not included
Weight	34 g	32 g	34 g	32 g	34 g	32 g
Color	White	Blue	White	Blue/Green/Amber/Black	White	Blue/Green/Amber/Black
