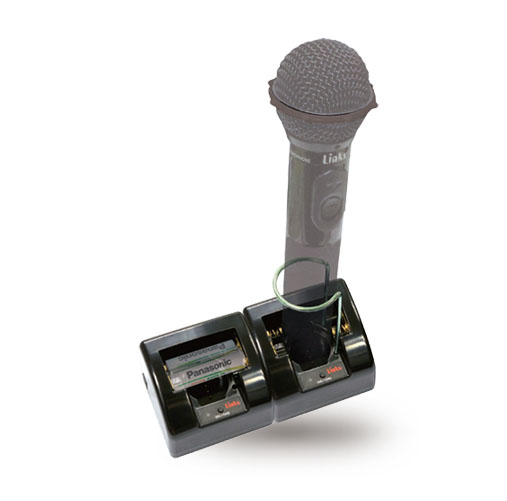

CHR-203|Chargers|Linkx

Dual Slot Charger
for all Infrared Sound Systems

Download

Unique professional design which could charge all kinds of Linkx transmitter.
Could charge up to 2 handheld microphones IRM-201/IRM-202 plus 4pcs of 1.2V rechargeable battery
-?V full charging detect, Micro-charge function automatically starts when battery is full and provides a small current to keep battery in constant full charge condition.
Essential false detect function: Blinking red light indicates one time battery is inserted. And blinking green/amber light indicates broken battery is inserted.

Model no	CHR-203
Charging Slot	Two slots, 2 x Handheld or 4 x 1.2V "AA" Rechargeable battery
Charging Mode	Switching
Charging Current	500 mA ±10% per slot
Charging Time	5~6 hours
Charging Indicators	Red = Charging Green = Full Amber = Discharging
Discharging Current	300 mA ±10% per slot
Discharging Button	Switchable, Discharging(amber)/Charging(red)
Auto Switching	Automatically switch to charging (red) mode upon exhaustion
Power Supply	DC 12V/600mA
Dimensions	158(W) x 70(D) x 63(H) mm
Weight	330 g
